Ruggedized Handheld Computers
Richmond Systems is pleased to offer our customers ruggedized Android based handheld hardware on which to run our MobileScale software.
For new handheld computers, we currently offer the Archer 4, available with the Allegro Wireless Keyboard.
We aim to offer the best hardware available for the job. Our software also runs on rugged handhelds and mobile devices from many manufacturers — a number of our clients use Trimble and Samsung devices.
Our Mobile Scale software is designed for these rugged handheld computers. Do not hesitate to contact us if you have an Android or Windows CE / Mobile handheld on which you’d like to try our software.
Please note: It is not necessary to purchase hardware from Richmond Systems in order to be able to run our software. If you have suitable hardware, we’ll help you get our software on it.

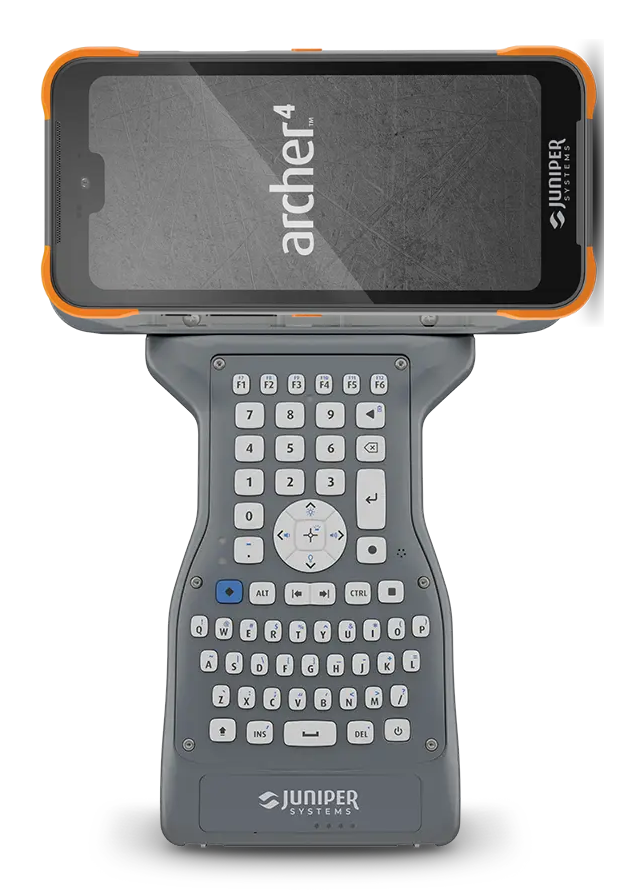

Archer 4
The Archer 4 is Juniper Systems’ newest rugged handheld — a modern, Android-based successor to the Allegro line. Paired with the Allegro Wireless Keyboard, it combines a large sunlight-readable touchscreen with the tactile keyboard data entry that scalers rely on.
- Operating system: Android 16 (upgradeable through Android 18)
- Octa-core Qualcomm QCM4490 processor
- 8GB RAM
- 128GB flash storage, plus user-accessible microSDXC slot (up to 512GB)
- 6.26" sunlight-readable FHD+ (1080x2280) display with wet-touch technology
- Hot-swappable batteries: standard 4500mAh or expanded 8300mAh, up to 18 hours per charge
- IP68 waterproof and dustproof
- MIL-STD-810H rated for drops, shock, and extreme temperatures
- Wi-Fi 6E, Bluetooth® 5.2, optional 5G LTE cellular
- Optional A4 GNSS Pod receiver for high-accuracy positioning
Allegro Wireless Keyboard: a rugged Bluetooth® keyboard that mounts directly to the Archer 4 — backlit QWERTY keys, IP68 rated, with up to 60 hours of use per charge.

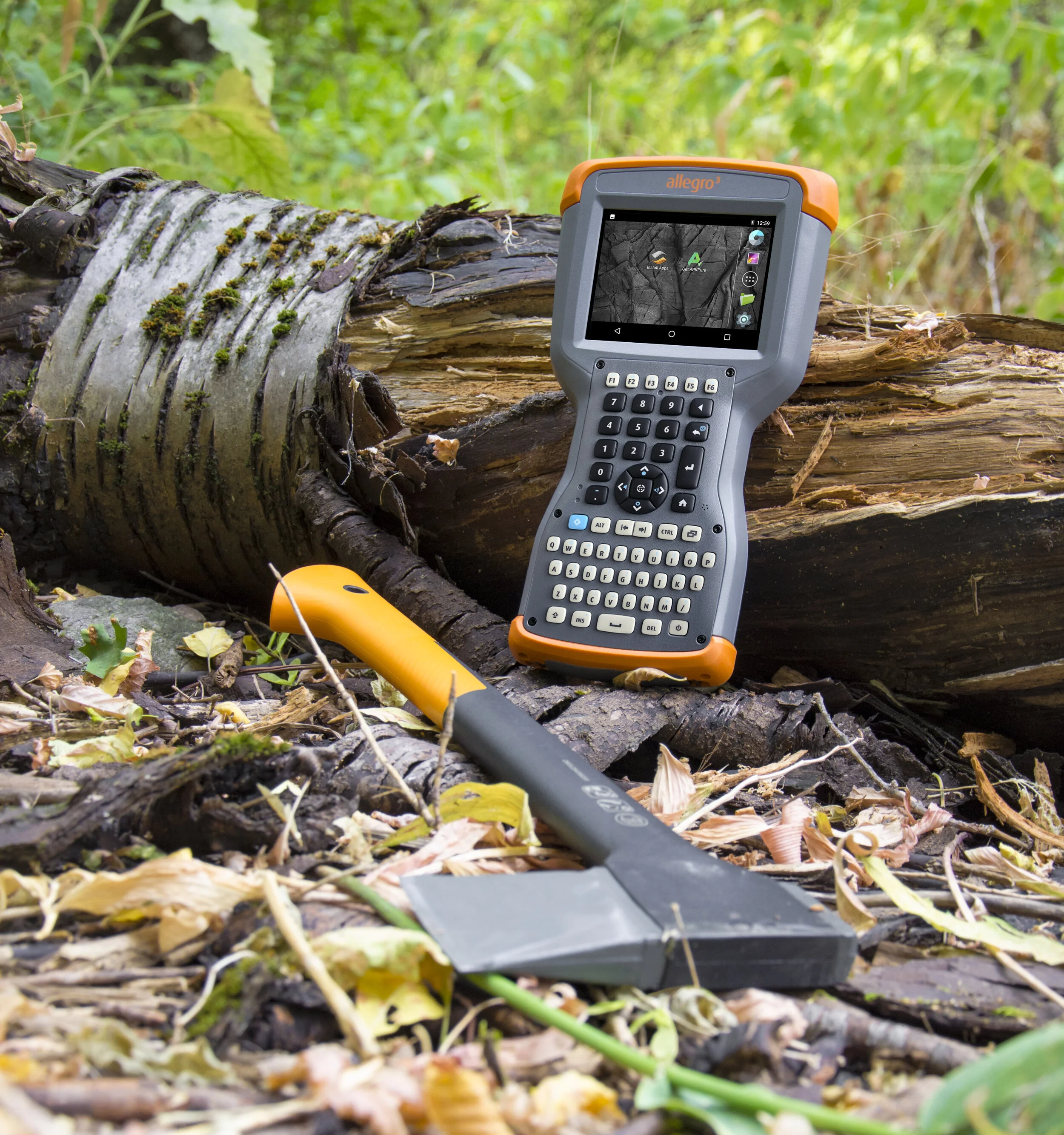

Allegro 3 (Discontinued)
- Operating system: Android 7.1 AOSP
- Processor: 1.2GHz ARM Cortex A9 i.MX6
- 2GB RAM
- 16GB flash storage
- User-accessible micro SD/SDXC slot
- Weight: 2 lbs (908 g), with battery
- Durable hardened plastic in a shear-proof and shock-resistant design
- Intelligent Li-Ion battery 3.6VDC @ 12000mAh, 43.2Whr
- Operates for up to 20 hours on one charge
- Charges in 5.5 hours typical
- Active viewing area: 4.2" (107 mm)
- VGA LCD TFT (640x480) Landscape Display
- High visibility backlit LCD
- Projected capacitive touch interface
- Chemically-strengthened glass
- Scratch-resistant screen
- IP68 waterproof and dustproof (1.4m for 30 min)
- Operating temperature: -22F to 140F (-30C to 60C)
- Storage temperature: -22F to 158F (-30C to 70C)

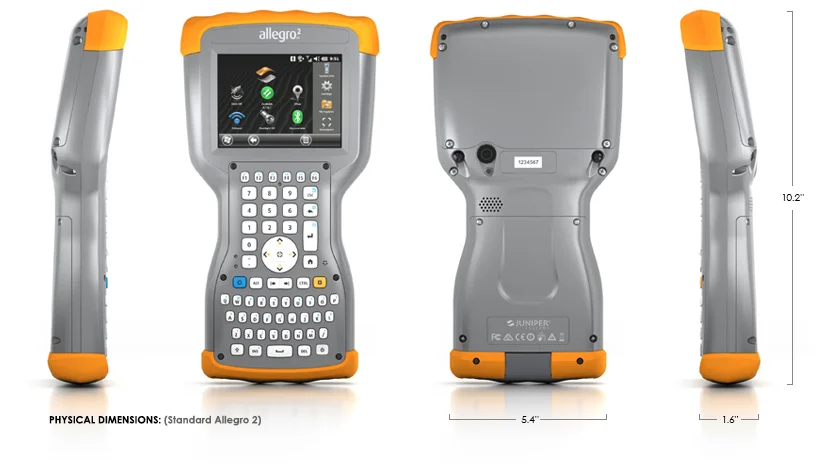

Allegro 2 (Discontinued)
- Microsoft® Windows Embedded Handheld 6.5.3
- 1.0GHz ARM Cortex A8 i.MX53 processor
- 512MB RAM
- 8GB flash storage
- User-accessible micro SD/SDHC slot
- 2 lbs (908 g), with battery
- Durable hardened plastic in a shear-proof and shock-resistant design
- Intelligent Li-Ion battery 3.6VDC @ 12000mAh, 43.2Whr
- Operates for up to 20 hours on one charge
- Charges in 5.5 hours typical
- Active viewing area: 4.2" (107 mm)
- TFT VGA (640x480) Landscape Display
- High visibility backlit LCD
- Projected capacitive touch interface
- Chemically-strengthened glass
- Scratch-resistant screen
- IP68 waterproof and dustproof
- Operating temperature: -22F to 140F (-30C to 60C), Note: Bluetooth® wireless technology is rated to –4F (–20C)
- Storage temperature: -22F to 158F (–30C to 70C)
