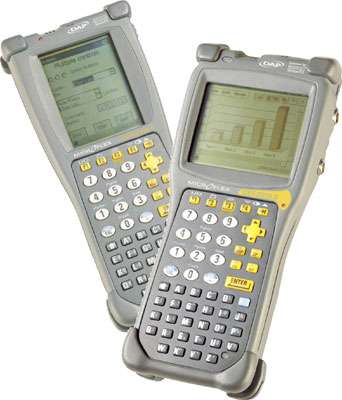

DAP TECHNOLOGIES CE 5320 Handheld (discontinued)

Operating System

  • Windows CE version 3.0
  • Built-in wireless device (RF) drivers
  • PCMCIA version 2.1 compliant
  • IrDA drivers for Windows CE


  • Strong Arm processor, the power of a Pentium 190 MHz


  • Flash ROM memory for Windows CE operating system: 16 Mb
  • Static RAM memory for disk use & system memory: 16 to 64 Mb

Communication Ports

  • 2 serial ports & 1 DAP IR port
  • 1 LEMO type connector
  • PCMCIA compliant
  • 1 IrDA complying optical port
  • Optional Integrated Bar Code Laser Scanner

PC Card Slots

  • User accessible through an environmentally sealed compartment
  • Accepts 2 PC Cards (Types I and II) or 1 PC Card (Type III)

Ergonomic Keyboard (Optional Backlighting Available)

  • 51 multi-function keys, including 5 direct access function keys
  • Alphanumeric keys with large, independent, numeric keypad


  • LCD with 320 x 240 pixels (touch screen available)
  • Backlighted screen with automatic temperature compensation
  • CGA compatible to display both text and graphics
  • Multiple font support
  • User customizable font sizing

Wireless Printing & Data Transfer

  • Print your files without connectors using the CE 5320's infrared port
  • Cordless data transfer between two DAP handheld units

Power Supply & Battery Charging

  • Microflex CE 5320 units use rechargeable Lithium-Ion battery packs
  • Complete battery re-charge in two hours
  • Battery life (starting with a full charge) is over 15 hours.
  • On-board intelligent "Fast Charge" system to extend the unit's battery life
  • Application independent power management controls
  • APM 1.1 supports main battery power gauge system
  • Universal communications & charging cradle available
  • Car battery power adapters available for mobile handheld recharging.


  • RSL stocks a full range of cables, adapters, power cords for DAP handhelds
  • Rugged carrying cases, shoulder straps and protective caps available
  • Memory upgrades, backlighted keypads, and user's manuals also available

Easy of Use:

  • Logically organized, menu driven operation in a Windows environment
  • Eight scaling methods in one program: Metric / Scribner / FBM / Alberta    Decimal C / Cubic / Doyle / Sample
  • Adaptable: Use two or more different scaling methods at the same time

Wireless: Use radio frequency technology to print or save your data from out in the yard

These ruggedly built portable computers are ideal for use in the most demanding of work environments.


  • Water tight ( ISO Certified for 2 hour submersion at 1m )
  • Drop Resistant ( 2m on concrete )
  • Environmentally sealed
  • Operates in temperatures from -30 to +50 °C
